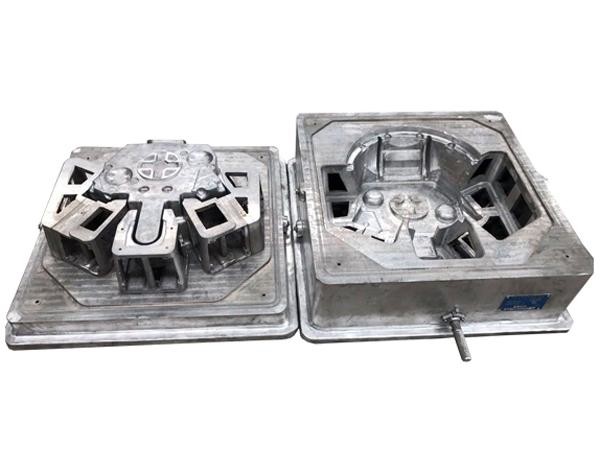

Aluminum Alloy H13 P20 Dry Sand Moulding CNC Machining Parts
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Dry Sand Moulding | Product Material | Aluminum Alloy H13 P20 |
|---|---|---|---|
| Surface Treatment | Heat Treatment | Average Wall Thickness | >4mm |
| Metal Color | Black Metal | Customized | Yes |
| Mould Life | 50,000-100,000 Shots | Using Hardness | >HRC45 |
| Highlight | P20 Dry Sand Moulding,H13 Dry Sand Moulding,H13 expendable mould casting |
||
Product Description
Aluminum Alloy H13 P20 Dry Sand Moulding CNC Machining Parts
Application of Dry Sand Moulding
industrial, consumer, food processing, aviation, seals/gaskets, lighting, packaging, filter, healthcare, telecommunications,
mechanical, water treatment, appliance, recreation, lawn and garden, educational, oil and gas, government, construction, plumbing,
surveillance, pumps,marine,motors,gears, RFID tags, electronics, and fasteners
|
Metal Foundry Sand Casting Mould Tooling for Auto Part Housing
|
|
|
Raw material |
Steel P20, 2311, H13, Grey Iron, Ductile iron, |
|
Design&Program Softwares |
CAD, Cam,Cae, PRO-E, Ug,Soild Works |
|
Other Equipment |
Gantry Machining Center, OKUMA 4 axis &5 axis, Inductothem Electric furnace 10 Ton , Sand blasting machine, Resin boned machine, |
|
Manufacturing technique |
Sand casting, Moulding Line |
| Application | Milling machine ,vehicle mould, steam turbine, mining machine, construction machine, Wind generator… |
| Advantages |
complete testing equipment and testing procedure to ensure casting elements content fulfill requirements ; Testing proceeded in cast sand, raw material, molten iron , finished product |
|
Package |
Wooden box |
| Delivery | 30-45 days |
| Needed information to quote | Material, Drawing, Heat treatment, work allowance, Need Machining or not. |
We could verify the casting process with the professional casting process software CAE before we develope the mould, to make sure the product output rate is higher;
Our Advantages
1. We are the well-known foundry mould manufacturer in China and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment.Professional undertake various kinds of superior difficulty and complex casting Mould;
2. We have 3 senior casting mould craftsmen and 36 professional foundry mould designers who design the structure and the process of the mould. That ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
