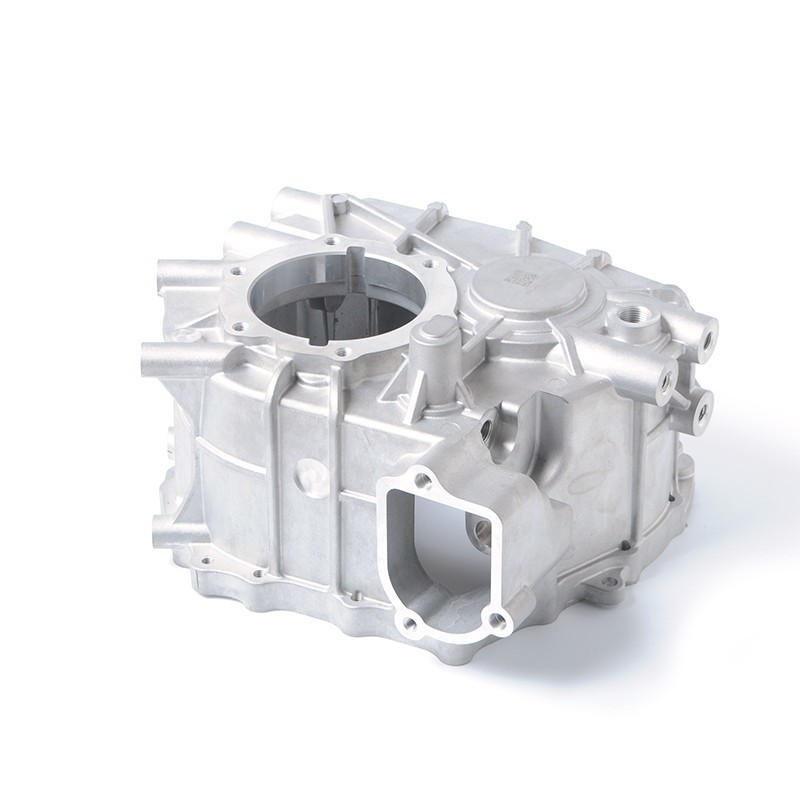

OEM Al Aluminium Die Casting Mould AutoCAD 50,000-100,000 Shots
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Al Aluminium Die Casting Mould | Customized | Yes |
|---|---|---|---|
| Software | AutoCAD, UG, Pro-E, Solidworks | Type | Lost Foam Casting |
| Demoulding | Automatic | Average Wall Thickness | >4mm |
| Mould Life | 50,000-100,000 Shots | Service | ODM/OEM |
| Lead Time | 30-45 Days | ||
| Highlight | OEM Aluminium Die Casting Mould,100 000 Shots Aluminium Die Casting Mould,100 000 Shots oem al die casting |
||
Product Description
OEM Al Aluminium Die Casting Mould AutoCAD 50,000-100,000 Shots
Specification of Aluminium Die Casting Mould
| Name | OEM Al Aluminium Die Casting Mould AutoCAD 50,000-100,000 Shots |
| Material | Aluminium |
| Color & Shape | Custom, according to your requirement |
| Process | Die casting mold |
| Application | For the metal parts which widely used in bathroom, kitchen, interior decoration, vehicle, lighting, furniture etc |
| Die casting mold machine | CNC processing center, milling machine, grinding machine, lathe, electrical discharge machining, high-speed wire cutting, low-speed wire cutting etc |
| Die casting parts machine | zinc alloy die casting machine, aluminum alloy die casting machine, CNC lathes, compound machine, Punch, drilling machine, Tapping Machine, Polishing machine, Paint line, Plating line, Sand blasting machine etc |
| Mold surface treatment | Polish, ABP+Oxidation etc |
| Parts surface treatment | Polish, sand blasting, electroplate, oxidation, paint etc |
Manufacture Process
1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery
Our Advantages
1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
