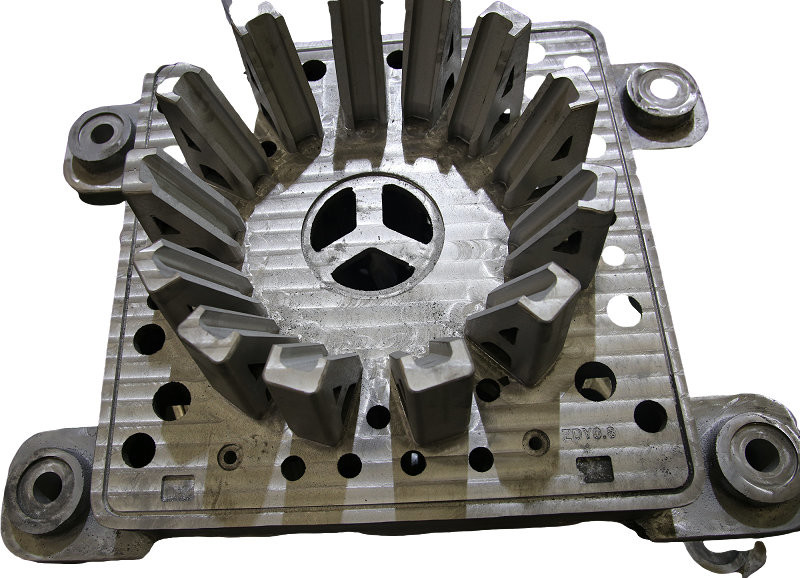

Motor Housing Mold Die Cast Aluminum Alloys Low Pressure

Motor Housing Mold Die Cast Aluminum Alloys Low Pressure

A precise and complex process is needed to create a motor housing mold, ensuring that the finished product satisfies all necessary requirements.


Material Selection:

• Mold Material: High-quality tool steel or aluminum is commonly used for making motor housing molds due to their durability and thermal conductivity.

• Surface Finish: The mold surfaces are polished or treated to achieve the desired surface finish on the molded part.

Mould Description

1. Drawing: Provide by customer, or design according as the sample.

2. ODM we have the client's idea or draft first,then our experienced engineer will build the best design and manufacturing technology.finally our sales will supply the verified design and solution to our client for confirming.

3. OEM that means Customer design or samples will be very welcome,we will follow client standard to manufacturing this product 100%.




Our Advantages

1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
