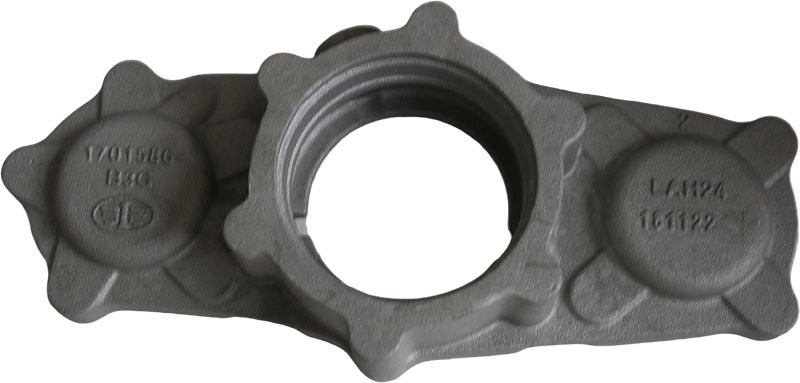

Second Axis Rear Bearing Cap Truck And Auto Parts Casting Mould

Second Axis Rear Bearing Cap Truck And Auto Parts Casting Mould

The gearbox or differential of a car usually contains the second axis rear bearing cap. It is essential for maintaining and protecting the second axis's rear bearing, which is frequently connected to the transmission system's secondary shaft or countershaft.

Design:

1. Material: Typically made from durable materials such as cast iron, steel, or aluminum, designed to withstand high loads and operating temperatures.

2. Mounting: Features bolt holes or other fastening methods to secure it to the gearbox or differential housing.

3. Sealing: Often includes seals or gaskets to prevent the leakage of lubricants and to keep contaminants out.

Auto Parts Casting Mould Features

• Engineering With Accuracy and Stability Dimensional

• Easily Assembled and Disassembled;

• Low maintenance

• Longer life

• Fine finish

• High strength

• Rugged design

• Durable nature

Manufacture Process

1. Review the part design,drawings and quality standard from clients.
2. Mould and Tooling design & manufacturing
3. Mould and Tooling testing & confirm the sample
4. Die casting raw castings
5. Surface treatment: Trimming,Deburring, polishing, cleaning, passivation & power coating and other requirement from Customer
6. Precision machining: CNC lathes, milling, drilling, grinding etc
7. Full Inspection
8. Packing
9. Delivery

Our Advantages

1. We are the biggest lost foam mould manufacturer in China, we focus on high challenge lost foam mould and we have large gantry machining centers,30 sets imported high speed machining center,more than 40 sets general machine tool equipment;
2. We have 36 senior mould designers, to ensure reasonable / safety / high efficiency mould design and ensure the fast mould delivery and rational mould structure, make the process more safer and the production efficiency more higher;
3. We using numerical control machine tool to manufacture the mould cavities, to ensure a even thickness ;
4. We using ZL104 Aluminium to casting the mould, to manufacture a high strength mould;
5. For the big mould, we using Ø22*1 copper tube as cooling pipe, with water spray system, to get a nice cooling effect;
6. We Have (TEF10N) coating on the mould surface, it can reduce the friction, anti water/static electricity/acid-base/high-temperature, with this we can ensure the pattern has smooth surface without distrotion, and easy to demould;
7. All the screws we using stainless steel screw, easy to disassemble during maintenance;
8. For the big mould chest, we using 18-20mm thick wrought aluminium plate, to offer high strenght cavity ;
9. For the complex mould which is difficult to demould, we can manufacture the automaitc mould with take out device ;
10. We produce the pattern sample to customer after finish the mould, when the pattern was qualified, then we do exceptance job for the mould ;
11. We have the Hexagon coordinate measuring instrument imported from the Switzerland to have a test make sure our mould qualified.
